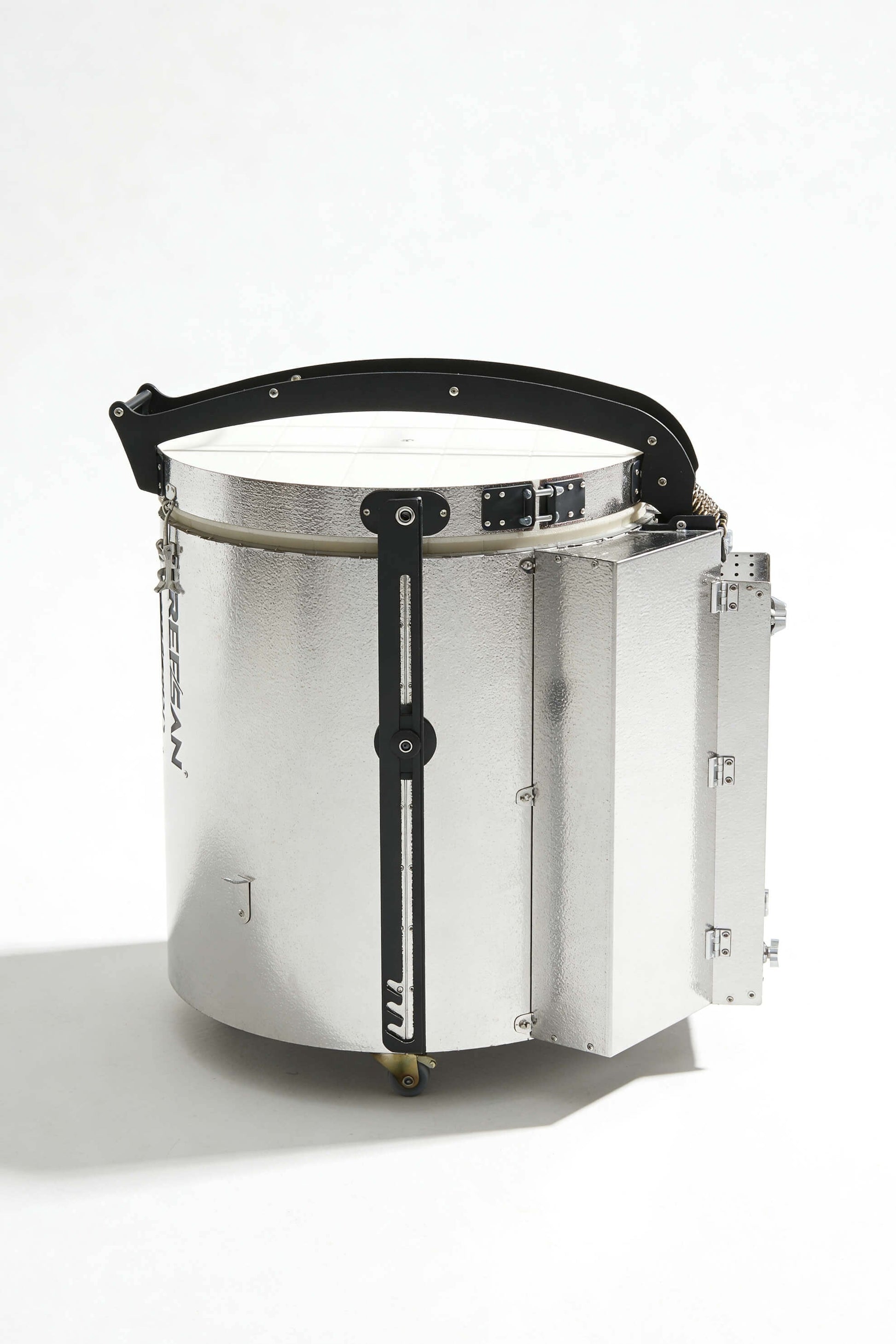

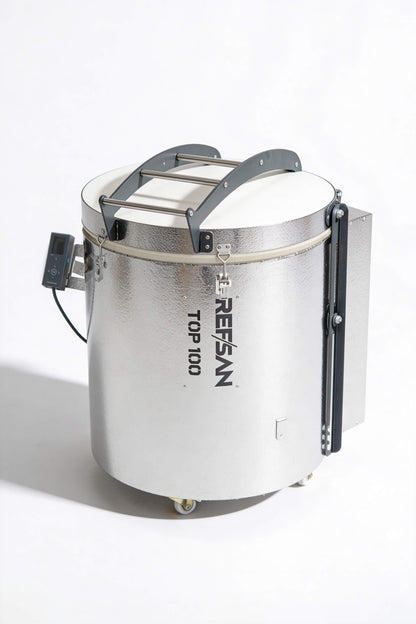

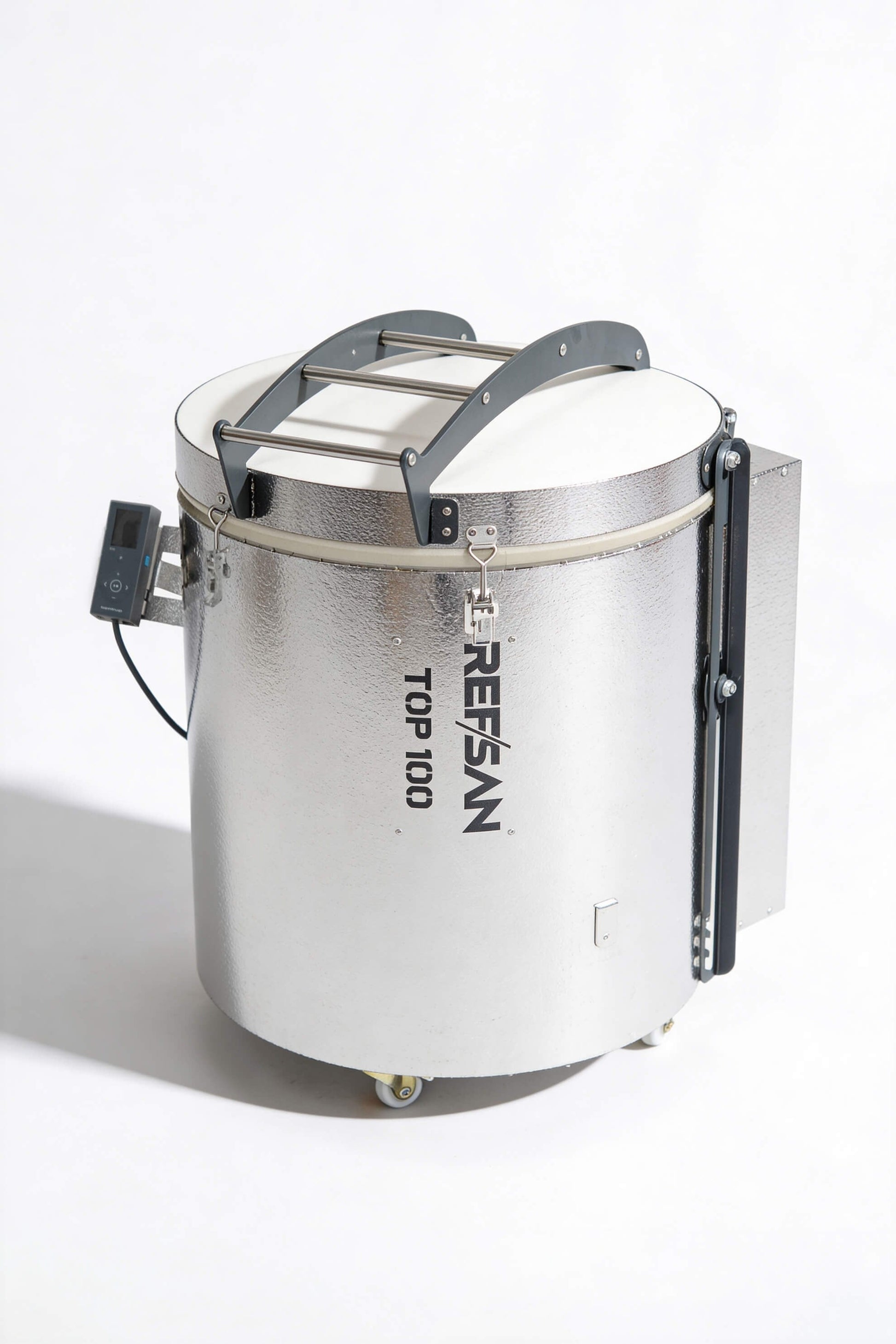

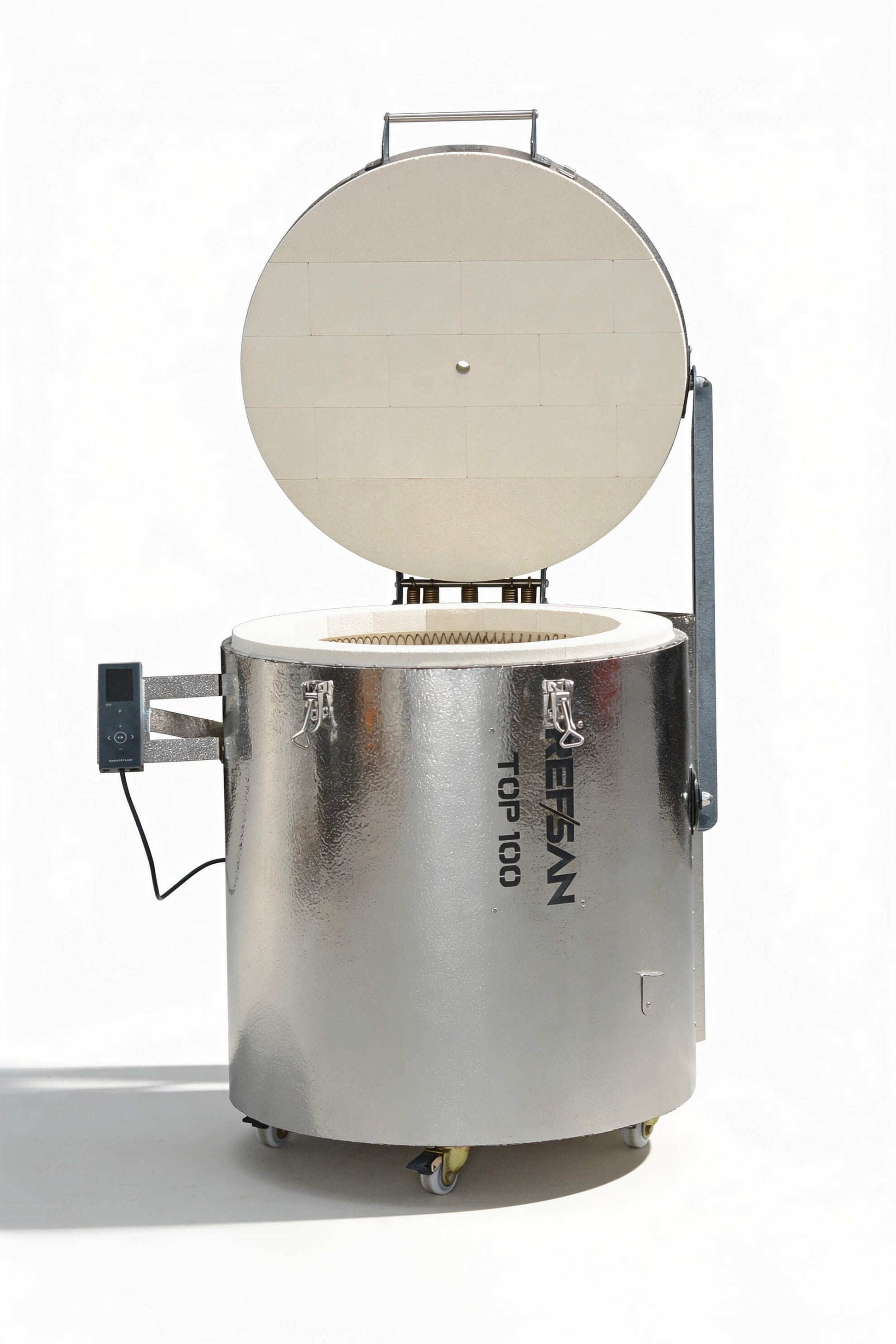

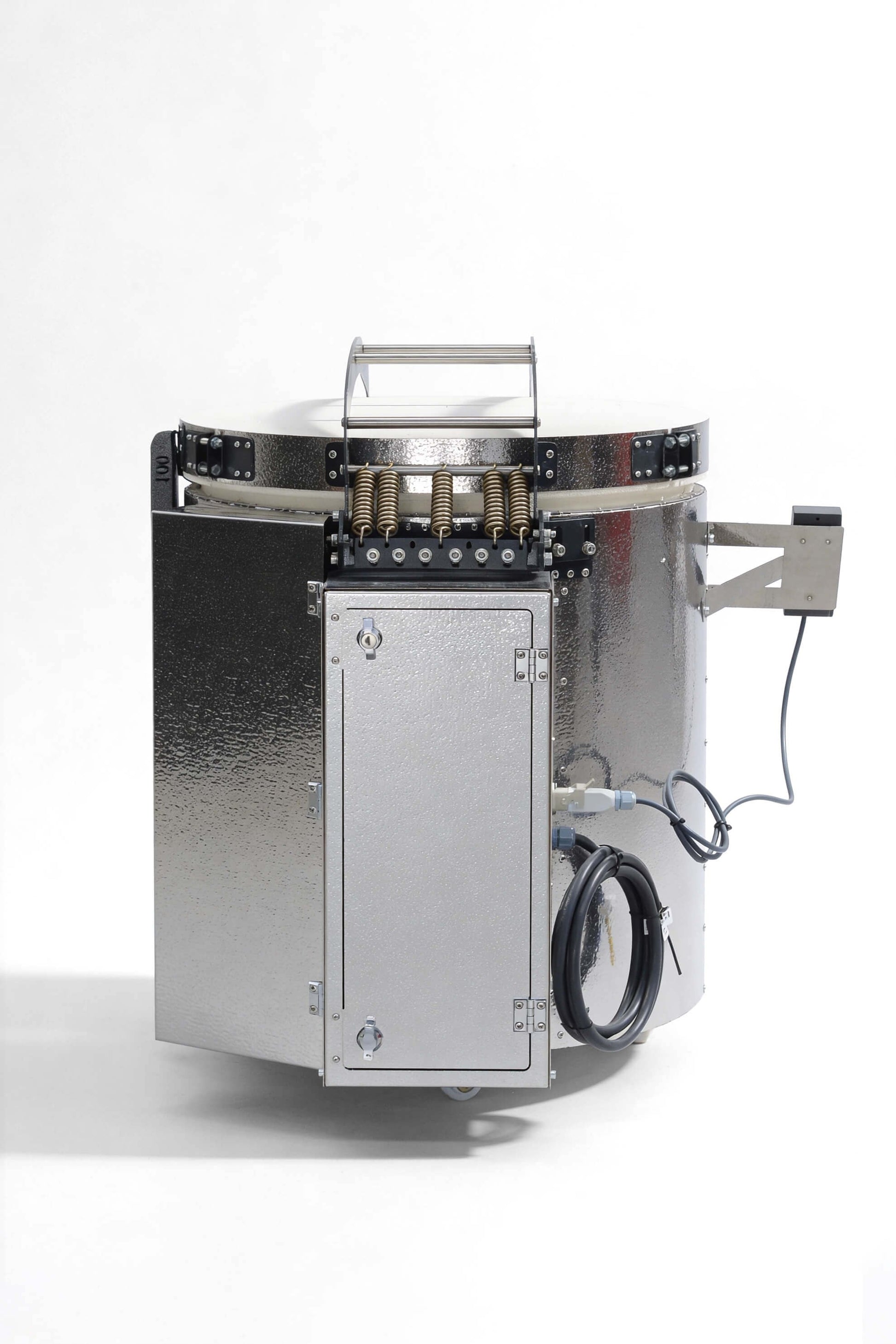

Refsan Kiln Top100
Refsan Kiln Top100
Regular price
€5.090,00 EUR
Regular price
Sale price
€5.090,00 EUR
Unit price
per
Taxes included.
Shipping calculated at checkout.
Model
TOP 100
Oven Type
TOP-FOLDED
Volume
100 LT.
Maximum Temperature
1200°C
Inner Diameter
480 mm
Interior Height
575 mm
External Height
940 mm
External Dimensions (WxDxH)
90x70x94 cm
Weight (Approx.)
160 kg
Electrical Connection
Three-phase (3-phase) Single-phase
Supply
230V 400V
Cable Thickness - Fuse
For the 230V TOP Model: Cable Thickness 3x10 - Fuse (Amperage) 1x50 For the 400V TOP Model: Cable Thickness 5x4 - Fuse (Amperage) 3x25
Strength
10kW
Thermocouple
K TYPE ( 0 - 1200 °C) S TYPE ( 0 - 1320 °C)
Thermocouple count
1 Piece (Back Center)

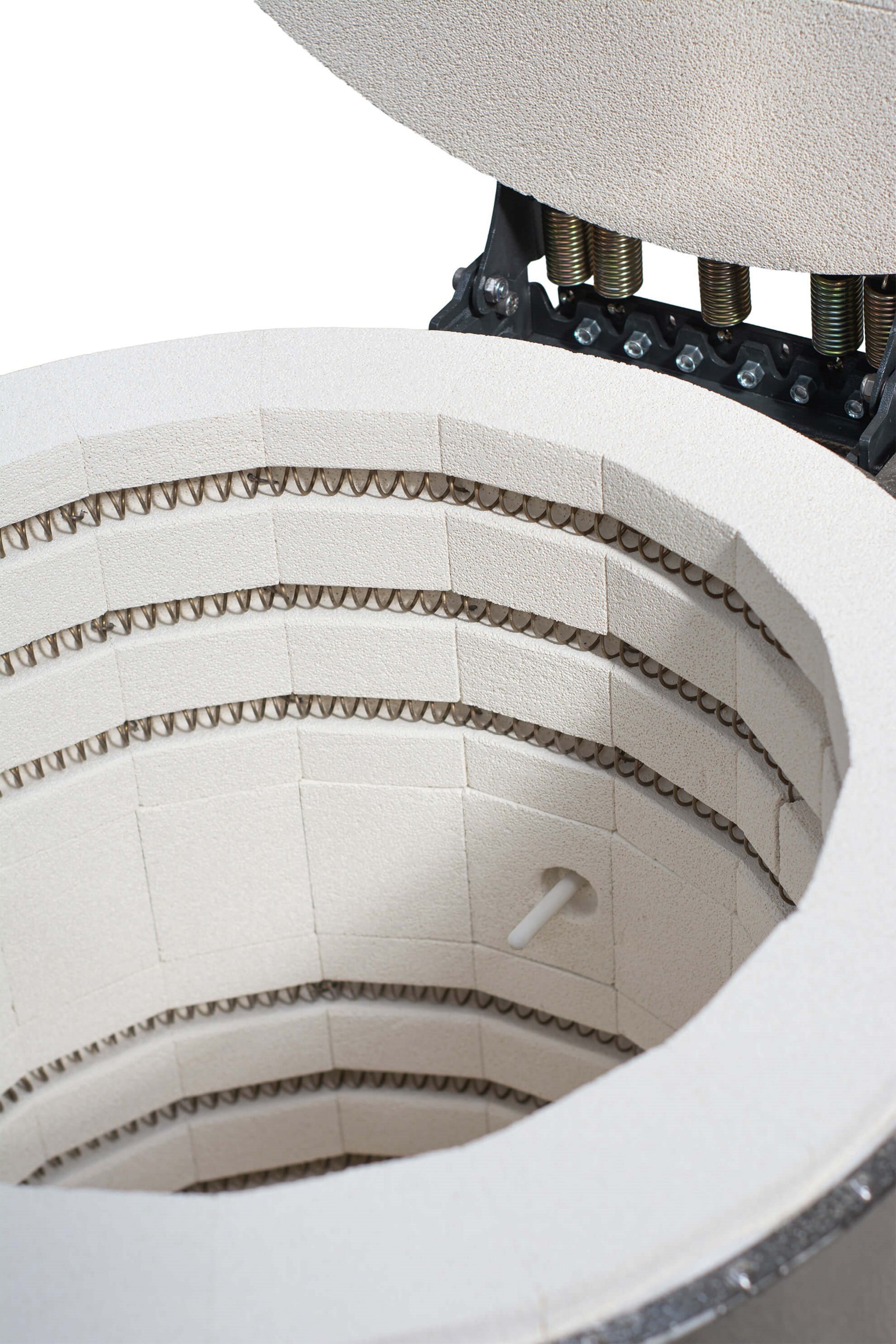

Insulation Type
EUROPEAN ALUMINA BRICK (1430°C)
Heating Type
ELECTRIC KANTHAL A1
Body Structure
STAINLESS STEEL (304 Grade)
Contact Type
SSR
Protection Switch
Wheel
Door Lock

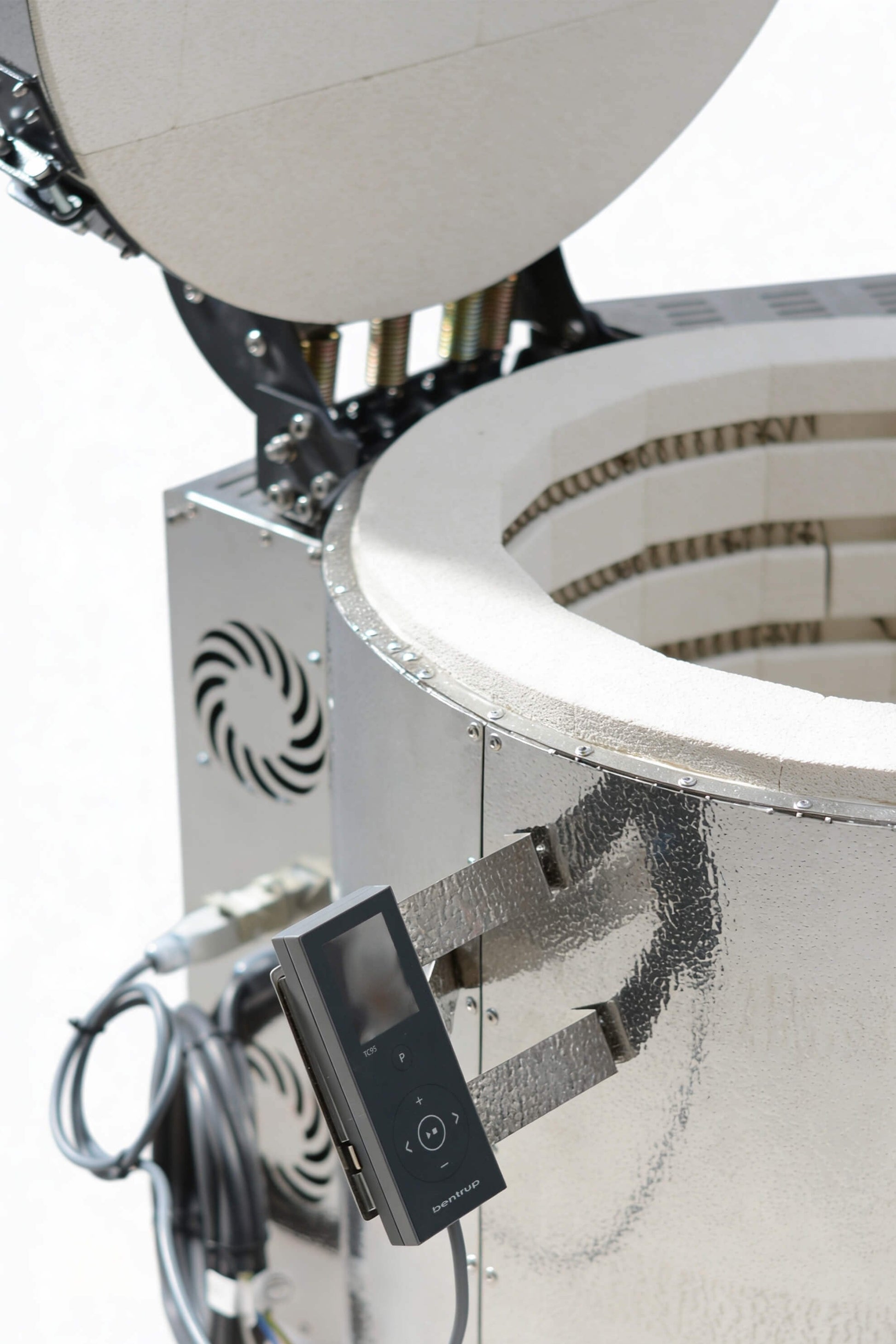

Control Unit (Standard)
DIGITAL PROGRAMMER (5 PROGRAM + 15 STEPS)
Control Unit (Optional)
Bentrup TC705 (Germany)
Report Review
Last 8 Burns
Automatic activation during power outages.
Automatic operation at the desired day and time.
Origin
Türkiye
